Compiling ZGE for linux ARM / aarch64

All topics about ZGameEditor goes here.

Moderator: Moderators

User avatar
Ats
Posts: 408
Joined: Fri Sep 28, 2012 10:05 am
Contact:

Compiling ZGE for linux ARM / aarch64

Post by Ats » Thu Apr 15, 2021 11:16 pm

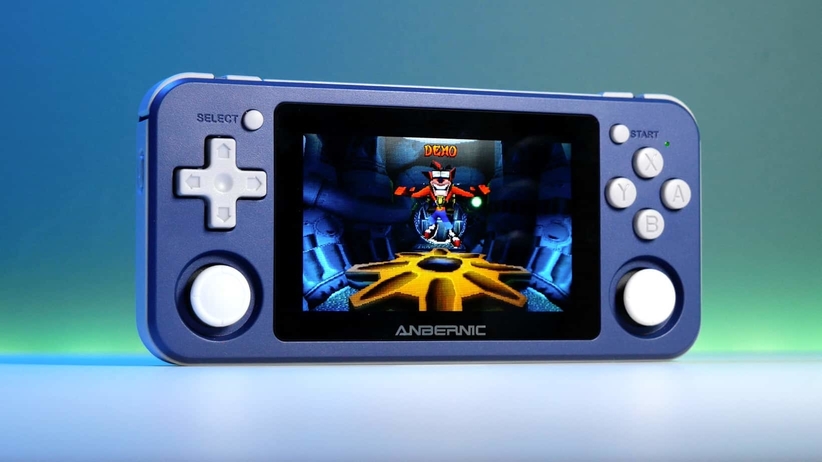

Today I was planning to run ZGE on RG351P, which is a great little console running under ARKOS, a linux for ARM. Perfect for emulation and homebrews.
And so I managed to cross compile FPC arm-linux from x86_64-linux. Quite easily in fact. I think I'm getting good at this :lol:
I noted everything to make a great tutorial afterwards.
I tested a simple Pascal program to verify it is running on the console, and it is! Everything is running smoothly until now.

Code: Select all

Program test;
uses Crt;

var
  i : longint;
begin
  ClrScr;
  WriteLn('Counting Down');
  for i:=10 downto 1 do
   begin
     WriteLn(i);
     Delay(1000);
   end;
  WriteLn('BOOM!!!');
end.
Then I started cross compiling ZzDC.dpr using :

/usr/local/lib/fpc/3.3.1/ppcrossarm -al -XXis -O2 -dZZDC_SDL -dMINIMAL -FU./Build/arm-linux/obj/ -Fu/usr/local/lib/fpc/3.3.1/units/arm-linux/pthreads/ -Fu/usr/local/lib/fpc/3.3.1/units/arm-linux/fcl-base/ -Fu/usr/local/lib/fpc/3.3.1/units/arm-linux/paszlib/ -Fu/usr/local/lib/fpc/3.3.1/units/arm-linux/hash/ -Fu/usr/local/lib/fpc/3.3.1/units/arm-linux/rtl-objpas/ -Tlinux -Parm -XParm-linux- -B -Mdelphi -FE./Build/arm-linux ZzDC.dpr


But I'm getting errors with the assembly inside ZExpressions.pas :

ZExpressions.pas(2504,5) Error: Unrecognized opcode call
ZExpressions.pas(2504,10) Error: Assembler syntax error
ZExpressions.pas(2506,16) Error: Unknown identifier "EAX"
ZExpressions.pas(2514,14) Error: Unknown identifier "ESP"
ZExpressions.pas(2529,7) Error: Unrecognized opcode fstp
ZExpressions.pas(2529,12) Error: Assembler syntax error
ZExpressions.pas(2530,7) Error: Unrecognized opcode wait


Maybe a missing lib? Or unreachable code in ZExpressions.pas due to $ifndef ? I'm a bit stuck.
Last edited by Ats on Mon Apr 19, 2021 12:40 pm, edited 1 time in total.

User avatar
Kjell
Posts: 1755
Joined: Sat Feb 23, 2008 11:15 pm

Re: Compiling ZGE for linux ARM

Post by Kjell » Thu Apr 15, 2021 11:46 pm

Hi Ats,
Ats wrote:
Thu Apr 15, 2021 11:16 pm
Maybe a missing lib? Or unreachable code in ZExpressions.pas due to $ifndef?
You / the-compiler is trying to use a incompatible implementation of TExpExternalFuncCall.Execute. The selected implementation targets x86 CPUs running MacOS, which uses inline assembly instructions that don't exist on ARM CPUs. There is already a implementation that uses ARM instructions though ( for Android ), so it shouldn't take too much effort to adapt the code.

K

User avatar
Ats
Posts: 408
Joined: Fri Sep 28, 2012 10:05 am
Contact:

Re: Compiling ZGE for linux ARM

Post by Ats » Fri Apr 16, 2021 7:30 am

All right. So after checking ZExpression.pas more thoughtfully, here's what has already been defined :

2092: {$if defined(android)}
2173: {$elseif defined(cpux64)}
2435: {$elseif defined(cpux86) or defined(CPU32)}
2554: {$if defined(cpuaarch64)} // ARM64
2777: {$ifend}

Since the processor of the console is an ARM64 RK3326, maybe I could simply compile for aarch64 instead of arm?
The problem is that there are no instructions to create the cross-compiler for aarch64: https://wiki.lazarus.freepascal.org/Cross_compiling

I'll see if I can do it without those 8)

Edit:
And so I simply replaced arm per aarch64 in:
sudo make crossinstall CPU_TARGET=aarch64 OS_TARGET=linux CROSSBINDIR=/home/ats/fpc/binutils/ OPT=-dFPC_ARMEL INSTALL_PREFIX=/usr/local

But I end up with errors:

make[6]: Entering directory '/home/ats/fpc/rtl/linux'
make[6]: '/home/ats/fpc/rtl/units/aarch64-linux' is up to date.
make[6]: Leaving directory '/home/ats/fpc/rtl/linux'
/home/ats/fpc/binutils//as -o /home/ats/fpc/rtl/units/aarch64-linux/prt0.o aarch64/prt0.as
aarch64/prt0.as: Assembler messages:
aarch64/prt0.as:14: Error: ARM register expected -- `ldr x10,=__dl_fini'
aarch64/prt0.as:15: Error: ARM register expected -- `str x0,[x10]'
aarch64/prt0.as:22: Error: ARM register expected -- `mov x29,#0'
aarch64/prt0.as:25: Error: ARM register expected -- `ldr x1,[sp]'
aarch64/prt0.as:26: Error: ARM register expected -- `add x2,sp,#8'
aarch64/prt0.as:27: Error: ARM register expected -- `add x11,x1,#1'
aarch64/prt0.as:28: Error: ARM register expected -- `add x11,x2,x11,lsl#3'
aarch64/prt0.as:31: Error: ARM register expected -- `ldr x10,=operatingsystem_parameter_argc'
aarch64/prt0.as:32: Error: ARM register expected -- `str x1,[x10]'
aarch64/prt0.as:33: Error: ARM register expected -- `ldr x10,=operatingsystem_parameter_argv'
aarch64/prt0.as:34: Error: ARM register expected -- `str x2,[x10]'
aarch64/prt0.as:35: Error: ARM register expected -- `ldr x10,=operatingsystem_parameter_envp'
aarch64/prt0.as:36: Error: ARM register expected -- `str x11,[x10]'
aarch64/prt0.as:37: Error: ARM register expected -- `ldr x10,=__stkptr'
aarch64/prt0.as:38: Error: ARM register expected -- `mov x6,sp'
aarch64/prt0.as:39: Error: ARM register expected -- `str x6,[x10]'
aarch64/prt0.as:47: Error: ARM register expected -- `ldr x10,=__dl_fini'
aarch64/prt0.as:48: Error: ARM register expected -- `ldr x0,[x10]'
aarch64/prt0.as:49: Error: selected processor does not support `cbz x0,.Lexit' in ARM mode
aarch64/prt0.as:50: Error: bad instruction `blr x0'
aarch64/prt0.as:52: Error: ARM register expected -- `ldr x10,=operatingsystem_result'
aarch64/prt0.as:53: Error: ARM register expected -- `ldr w0,[x10]'
aarch64/prt0.as:54: Error: ARM register expected -- `mov w8,#94'
make[5]: *** [Makefile:4376: prt0.o] Error 1
make[5]: Leaving directory '/home/ats/fpc/rtl/linux'
make[4]: *** [Makefile:3941: fpc_smart] Error 2
make[4]: Leaving directory '/home/ats/fpc/rtl/linux'
make[3]: *** [Makefile:2287: linux_smart] Error 2
make[3]: Leaving directory '/home/ats/fpc/rtl'
make[2]: *** [Makefile:2926: rtl_smart] Error 2
make[2]: Leaving directory '/home/ats/fpc'
make[1]: *** [Makefile:3169: build-stamp.aarch64-linux] Error 2
make[1]: Leaving directory '/home/ats/fpc'
make: *** [Makefile:3223: crossinstall] Error 2


Assembly, again... :roll:
Last edited by Ats on Fri Apr 16, 2021 8:20 am, edited 1 time in total.

User avatar
VilleK
Site Admin
Posts: 2151
Joined: Mon Jan 15, 2007 4:50 pm
Location: Stockholm, Sweden
Contact:

Re: Compiling ZGE for linux ARM

Post by VilleK » Fri Apr 16, 2021 8:20 am

Please check here for information about building Fpc for aarch64: https://wiki.freepascal.org/macOS_Big_S ... on_Support

I've spent a bit of time on this recently because we are in the process of making FL Studio (with the ZGameEditor Visualizer plugin) running natively on Apple M1 CPUs.

User avatar
Ats
Posts: 408
Joined: Fri Sep 28, 2012 10:05 am
Contact:

Re: Compiling ZGE for linux ARM

Post by Ats » Fri Apr 16, 2021 1:36 pm

After a few tries to cross compile for linux aarch64 from linux x86_64, I went the other way around: compiling fpc directly on a Raspberry 3, since it is supposed to be an ARM 64 processor. But when I compile Free Pascal using:

svn checkout http://svn.freepascal.org/svn/fpc/trunk ~/fpc
cd ~/fpc
sudo make all
sudo make install

It gives me the same ppcarm elf. Not the 64 one. So I'm at the same point here...

By the way, I was surprised how smooth raspbian was working on the raspberry :o
Last edited by Ats on Sat Apr 17, 2021 7:50 am, edited 1 time in total.

User avatar
Ats
Posts: 408
Joined: Fri Sep 28, 2012 10:05 am
Contact:

Re: Compiling ZGE for linux ARM

Post by Ats » Fri Apr 16, 2021 2:16 pm

The 32/64 problems is coming from raspbian which is 32bits OS. https://www.raspberrypi.org/forums/view ... p?t=251721

I'll try again with a 64bits OS when I'll get home: https://downloads.raspberrypi.org/raspios_arm64/images/

User avatar
Ats
Posts: 408
Joined: Fri Sep 28, 2012 10:05 am
Contact:

Re: Compiling ZGE for linux ARM

Post by Ats » Fri Apr 16, 2021 10:45 pm

It went a bit farther with my raspberry under raspbian 64. It compiles but I have a problem during the linking:

Linking ./Build/aarch64-linux/ZzDC
ZzDC.dpr(94) Warning: "crtbegin.o" not found, this will probably cause a linking failure
ZzDC.dpr(94) Warning: "crtend.o" not found, this will probably cause a linking failure
/usr/bin/ld: ./Build/aarch64-linux/obj/ZExpressions.o: in function `ZEXPRESSIONS_$$_GENERATETRAMPOLINE$LONGINT$PCHAR$POINTER$$POINTER':
ZExpressions.pas:(.text.n_zexpressions_$$_generatetrampoline$longint$pchar$pointer$$pointer+0x2fc): undefined reference to `sys_icache_invalidate'
ZzDC.dpr(94) Error: Error while linking

I tried adding -Fu/usr/lib/gcc/aarch64-linux-gnu/10 where those files are located, without success.
I also tried -Fl and -Fo instead.


Edit:
Just find out about link.res useful information, which don't seems to search for crtbegin/end.o in the folder I provided in the command line:

Code: Select all

SEARCH_DIR("/lib/aarch64-linux-gnu/")
SEARCH_DIR("/usr/lib/aarch64-linux-gnu/")
SEARCH_DIR("/lib/")
SEARCH_DIR("/usr/lib/")
SEARCH_DIR("/usr/lib/printer-driver-escpr/")
SEARCH_DIR("/usr/lib/environment.d/")
SEARCH_DIR("/usr/lib/raspi-config/")
SEARCH_DIR("/usr/lib/notification-daemon/")
SEARCH_DIR("/usr/lib/xorg/")
SEARCH_DIR("/usr/lib/rsyslog/")
SEARCH_DIR("/usr/lib/vnc/")
SEARCH_DIR("/usr/lib/init/")
SEARCH_DIR("/usr/lib/rp-prefapps/")
SEARCH_DIR("/usr/lib/X11/")
SEARCH_DIR("/usr/lib/lsb/")
SEARCH_DIR("/usr/lib/terminfo/")
SEARCH_DIR("/usr/lib/lxinput/")
SEARCH_DIR("/usr/lib/menu-cache/")
SEARCH_DIR("/usr/lib/qpdfview/")
SEARCH_DIR("/usr/lib/gcc/")
SEARCH_DIR("/usr/lib/tc/")
SEARCH_DIR("/usr/lib/modprobe.d/")
SEARCH_DIR("/usr/lib/rc-gui/")
SEARCH_DIR("/usr/lib/mime/")
SEARCH_DIR("/usr/lib/blt2.5/")
SEARCH_DIR("/usr/lib/gvfs/")
SEARCH_DIR("/usr/lib/NetworkManager/")
SEARCH_DIR("/usr/lib/ifupdown/")
SEARCH_DIR("/usr/lib/file/")
SEARCH_DIR("/usr/lib/valgrind/")
SEARCH_DIR("/usr/lib/emacsen-common/")
SEARCH_DIR("/usr/lib/compat-ld/")
SEARCH_DIR("/usr/lib/kernel/")
SEARCH_DIR("/usr/lib/sudo/")
SEARCH_DIR("/usr/lib/groff/")
SEARCH_DIR("/usr/lib/gold-ld/")
SEARCH_DIR("/usr/lib/sysusers.d/")
SEARCH_DIR("/usr/lib/sysctl.d/")
SEARCH_DIR("/usr/lib/ispell/")
SEARCH_DIR("/usr/lib/tasksel/")
SEARCH_DIR("/usr/lib/piclone/")
SEARCH_DIR("/usr/lib/python3/")
SEARCH_DIR("/usr/lib/locale/")
SEARCH_DIR("/usr/lib/ssl/")
SEARCH_DIR("/usr/lib/pipanel/")
SEARCH_DIR("/usr/lib/packagekit/")
SEARCH_DIR("/usr/lib/pkgconfig/")
SEARCH_DIR("/usr/lib/pm-utils/")
SEARCH_DIR("/usr/lib/udisks2/")
SEARCH_DIR("/usr/lib/debug/")
SEARCH_DIR("/usr/lib/python3.9/")
SEARCH_DIR("/usr/lib/binfmt.d/")
SEARCH_DIR("/usr/lib/girepository-1.0/")
SEARCH_DIR("/usr/lib/pulse-14.2/")
SEARCH_DIR("/usr/lib/python2.7/")
SEARCH_DIR("/usr/lib/python3.7/")
SEARCH_DIR("/usr/lib/bfd-plugins/")
SEARCH_DIR("/usr/lib/man-db/")
SEARCH_DIR("/usr/lib/arandr/")
SEARCH_DIR("/usr/lib/gnupg2/")
SEARCH_DIR("/usr/lib/crda/")
SEARCH_DIR("/usr/lib/cups/")
SEARCH_DIR("/usr/lib/gui-pkinst/")
SEARCH_DIR("/usr/lib/runit-helper/")
SEARCH_DIR("/usr/lib/tcltk/")
SEARCH_DIR("/usr/lib/thunar-archive-plugin/")
SEARCH_DIR("/usr/lib/pypy/")
SEARCH_DIR("/usr/lib/dhcpcd/")
SEARCH_DIR("/usr/lib/firmware/")
SEARCH_DIR("/usr/lib/raspberrypi-sys-mods/")
SEARCH_DIR("/usr/lib/modules/")
SEARCH_DIR("/usr/lib/dhcpcd5/")
SEARCH_DIR("/usr/lib/klibc/")
SEARCH_DIR("/usr/lib/resolvconf/")
SEARCH_DIR("/usr/lib/openssh/")
SEARCH_DIR("/usr/lib/modules-load.d/")
SEARCH_DIR("/usr/lib/gnupg/")
SEARCH_DIR("/usr/lib/arm-linux-gnueabihf/")
SEARCH_DIR("/usr/lib/chromium/")
SEARCH_DIR("/usr/lib/apt/")
SEARCH_DIR("/usr/lib/tmpfiles.d/")
SEARCH_DIR("/usr/lib/sasl2/")
SEARCH_DIR("/usr/lib/systemd/")
SEARCH_DIR("/usr/lib/aspell/")
SEARCH_DIR("/usr/lib/dpkg/")
SEARCH_DIR("/usr/lib/dbus-1.0/")
SEARCH_DIR("/usr/lib/console-setup/")
SEARCH_DIR("/usr/lib/udev/")
SEARCH_DIR("/usr/lib/colord/")
SEARCH_DIR("/usr/lib/policykit-1/")
SEARCH_DIR("/usr/local/lib/fpc/3.3.1/units/aarch64-linux/pthreads/")
SEARCH_DIR("/usr/local/lib/fpc/3.3.1/units/aarch64-linux/fcl-base/")
SEARCH_DIR("/usr/local/lib/fpc/3.3.1/units/aarch64-linux/paszlib/")
SEARCH_DIR("/usr/local/lib/fpc/3.3.1/units/aarch64-linux/hash/")
SEARCH_DIR("/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl-objpas/")
SEARCH_DIR("/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/")
SEARCH_DIR("/usr/local/lib/fpc/3.3.1/")
INPUT(
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/cprt0.o
/lib/aarch64-linux-gnu/crti.o
./Build/aarch64-linux/obj/ZzDC.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/system.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/objpas.o
./Build/aarch64-linux/obj/ZClasses.o
./Build/aarch64-linux/obj/ZOpenGL.o
./Build/aarch64-linux/obj/ZBitmap.o
./Build/aarch64-linux/obj/BitmapProducers.o
./Build/aarch64-linux/obj/ZPlatform.o
./Build/aarch64-linux/obj/ZApplication.o
./Build/aarch64-linux/obj/ZLog.o
./Build/aarch64-linux/obj/Animators.o
./Build/aarch64-linux/obj/Meshes.o
./Build/aarch64-linux/obj/Renderer.o
./Build/aarch64-linux/obj/ZMath.o
./Build/aarch64-linux/obj/Commands.o
./Build/aarch64-linux/obj/ZExpressions.o
./Build/aarch64-linux/obj/Collision.o
./Build/aarch64-linux/obj/Steering.o
./Build/aarch64-linux/obj/AudioPlayer.o
./Build/aarch64-linux/obj/AudioComponents.o
./Build/aarch64-linux/obj/ImplicitMeshes.o
./Build/aarch64-linux/obj/ZFile.o
./Build/aarch64-linux/obj/NanoJpeg.o
./Build/aarch64-linux/obj/GLDrivers.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/math.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/paszlib/zstream.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl-objpas/strutils.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/sysutils.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/linux.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/unix.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/errors.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/sysconst.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/unixtype.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/baseunix.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/unixutil.o
./Build/aarch64-linux/obj/SDL.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/fcl-base/syncobjs.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/dl.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/pthreads/pthreads.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/initc.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/ctypes.o
./Build/aarch64-linux/obj/BeRoAudioOGGVorbisTremor.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/classes.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/paszlib/zbase.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/paszlib/gzio.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/types.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/typinfo.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/rtlconsts.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/rtl/sortbase.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/hash/crc.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/paszlib/zdeflate.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/paszlib/zinflate.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/paszlib/trees.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/paszlib/adler.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/paszlib/infblock.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/paszlib/infutil.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/paszlib/infcodes.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/paszlib/inftrees.o
/usr/local/lib/fpc/3.3.1/units/aarch64-linux/paszlib/inffast.o
)
INPUT(
-lpthread
-lSDL
-ldl
)
GROUP(
-lc
)
INPUT(
/lib/aarch64-linux-gnu/crtn.o
)
SECTIONS
{
  .fpcdata           :
  {
    KEEP (*(.fpc .fpc.n_version .fpc.n_links))
  }
  .threadvar : { *(.threadvar .threadvar.* .gnu.linkonce.tv.*) }
}
INSERT AFTER .data;
So I added links to those:
sudo ln /usr/lib/gcc/aarch64-linux-gnu/10/crtbegin.o /usr/lib/aarch64-linux-gnu/crtbegin.o
sudo ln /usr/lib/gcc/aarch64-linux-gnu/10/crtend.o /usr/lib/aarch64-linux-gnu/crtend.o

Now there are no warnings about those at the end of the compilation, but it still crash with the same error message.

User avatar
VilleK
Site Admin
Posts: 2151
Joined: Mon Jan 15, 2007 4:50 pm
Location: Stockholm, Sweden
Contact:

Re: Compiling ZGE for linux ARM

Post by VilleK » Sat Apr 17, 2021 12:48 pm

Try commenting out the call to

sys_icache_invalidate

In Zexpressions.

It should only be needed on Mac I think.

User avatar
Ats
Posts: 408
Joined: Fri Sep 28, 2012 10:05 am
Contact:

Re: Compiling ZGE for linux ARM

Post by Ats » Sat Apr 17, 2021 1:51 pm

Thanks, with the two sys_icache_invalidate lines commented out, the player is building nice.

It's almost working:
Zge projects compiled with linux aarch64 bin gives the exact same problems as linux x86_64 bin :lol:

User avatar
VilleK
Site Admin
Posts: 2151
Joined: Mon Jan 15, 2007 4:50 pm
Location: Stockholm, Sweden
Contact:

Re: Compiling ZGE for linux ARM

Post by VilleK » Sat Apr 17, 2021 2:10 pm

I wonder if there is something wrong in how ZGE calls SDL in a 64-bit environment. I could not find a prebuilt 64-bit DLL for Windows to test with.

On this platform, do you build SDL yourself or do you use a prebuilt binary? From where do you get the SDL files?

User avatar
Ats
Posts: 408
Joined: Fri Sep 28, 2012 10:05 am
Contact:

Re: Compiling ZGE for linux ARM

Post by Ats » Sat Apr 17, 2021 4:27 pm

Since compilation isn't working with the included libsdl2-dev, I'm installing libsdl1.2-dev simply like that:

sudo apt-get update
sudo apt-get install libsdl1.2-dev

It works for i386 linux. But you're right, maybe it could come from this...
https://www.libsdl.org/download-1.2.php

I'm formatting the raspberry again to see what's going on with libsdl2 :wink:

User avatar
VilleK
Site Admin
Posts: 2151
Joined: Mon Jan 15, 2007 4:50 pm
Location: Stockholm, Sweden
Contact:

Re: Compiling ZGE for linux ARM

Post by VilleK » Sat Apr 17, 2021 6:13 pm

Note that SDL2 is not backwards compatible with SDL1. I should probably update ZGE to SDL2 but I have no idea how much work it is.

User avatar
Ats
Posts: 408
Joined: Fri Sep 28, 2012 10:05 am
Contact:

Re: Compiling ZGE for linux ARM

Post by Ats » Sat Apr 17, 2021 6:58 pm

I just searched your projects for all the old SDL functions, listed here: https://wiki.libsdl.org/MigrationGuide
And you are using them at least 3 times each.
That's not huge, but there's definitely some work :?

User avatar
VilleK
Site Admin
Posts: 2151
Joined: Mon Jan 15, 2007 4:50 pm
Location: Stockholm, Sweden
Contact:

Re: Compiling ZGE for linux ARM

Post by VilleK » Sun Apr 18, 2021 7:53 am

Thanks for that link. I'll try to make the transition to SDL2 in the next few days.

User avatar
VilleK
Site Admin
Posts: 2151
Joined: Mon Jan 15, 2007 4:50 pm
Location: Stockholm, Sweden
Contact:

Re: Compiling ZGE for linux ARM

Post by VilleK » Mon Apr 19, 2021 8:13 am

Committed support for SDL2. It was very straightforward following that guide. Tested working with 64-bit Windows.

You need to add "./3rdparty/sdl2" to the unit search path when building.

Post Reply
